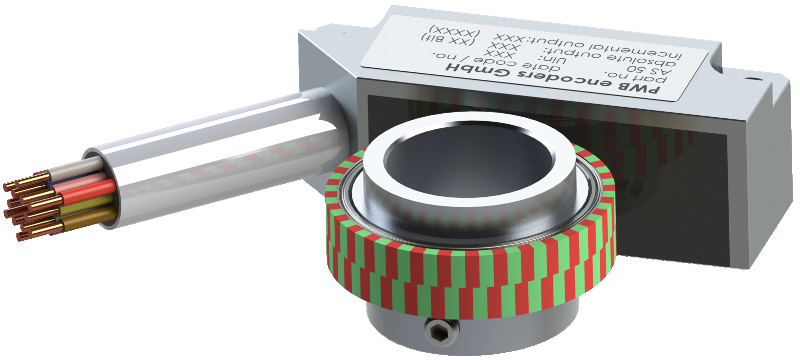

The AS 25/50 offers following ports, a hub incremental and absolute are simultaneously active.
Absolute Interface:
- SSI Interface (synchron serial interface)
- BiSS Interface (bidirectional serial synchron)
- SPI (direct connection microcontroller)
Incremental Interface:
- Incremental (ABI - differentiell)
- Commutation (UVW - differentiell)
- Sine/cosine (1 Vss - differentiell)
The AS 25/50 offers different output signals:
- Incremental signals: selectable from 1 to 65,536 impulses
- Commutation signals: selectable from 1 to 16 pole pairs
- Sine/cosine signals: 32 and 64 respectively
- Absolute signals: 18 bits (262,144 positions)
