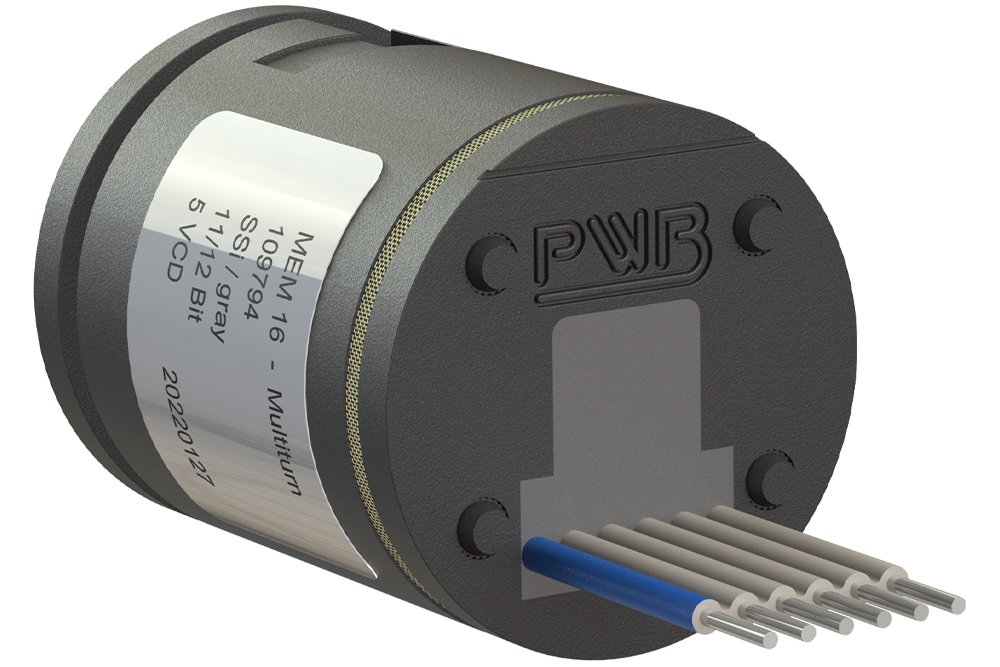

Main Features:
- Absolute rotary encoder
- Singleturn up to 16,384 (13 Bit) steps per revolution
- Multiturn up to 16,777,216 (32 Bit) revolutions
- SSI or BiSS Interface (Single Ended)
- Magnetic sensing
- Error monitoring
- Hollow shaft encoder
- High performance in compact size
- Quick and easy assembly
- Shaft diameter up to 3.175 mm
- Rotation speed up to 10,000 rpm
- Power supply 5 VDC
Applications:
- For absolute positioning
- For brushless motors, servo motors and steppers
- For real time systems
- For high speed applications
- For rough environments
