Optical. Magnetic. Incremental. Absolute.

Shaft encoders.

Our shaft encoders: high-precision motion control in the narrowest of spaces.

Our patented designs and linear and shaft encoder systems guarantee reliable functionality and maximum precision. Mini shaft encoders are proof that perfect motion control can be implemented in the tightest of spaces. This means that all PWB Encoders series of encoders are among the most cost-effective encoder solutions on the market.

All optical incremental
encoders

Outer diameter in mm Drilling in mm Resolution in cpr Output channels Voltage V DC

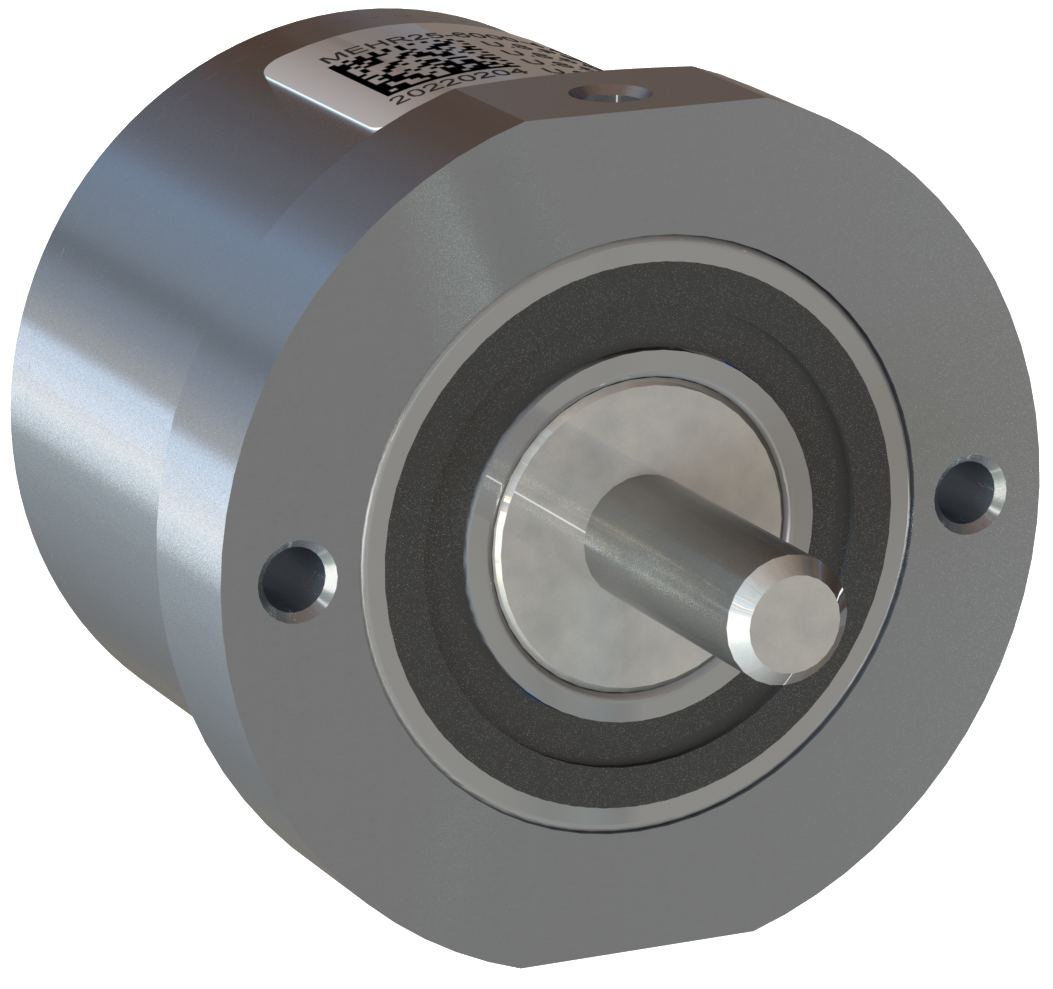

GEO24+radial

GEO24

optical incremental
 		24 4 360 2 8-24

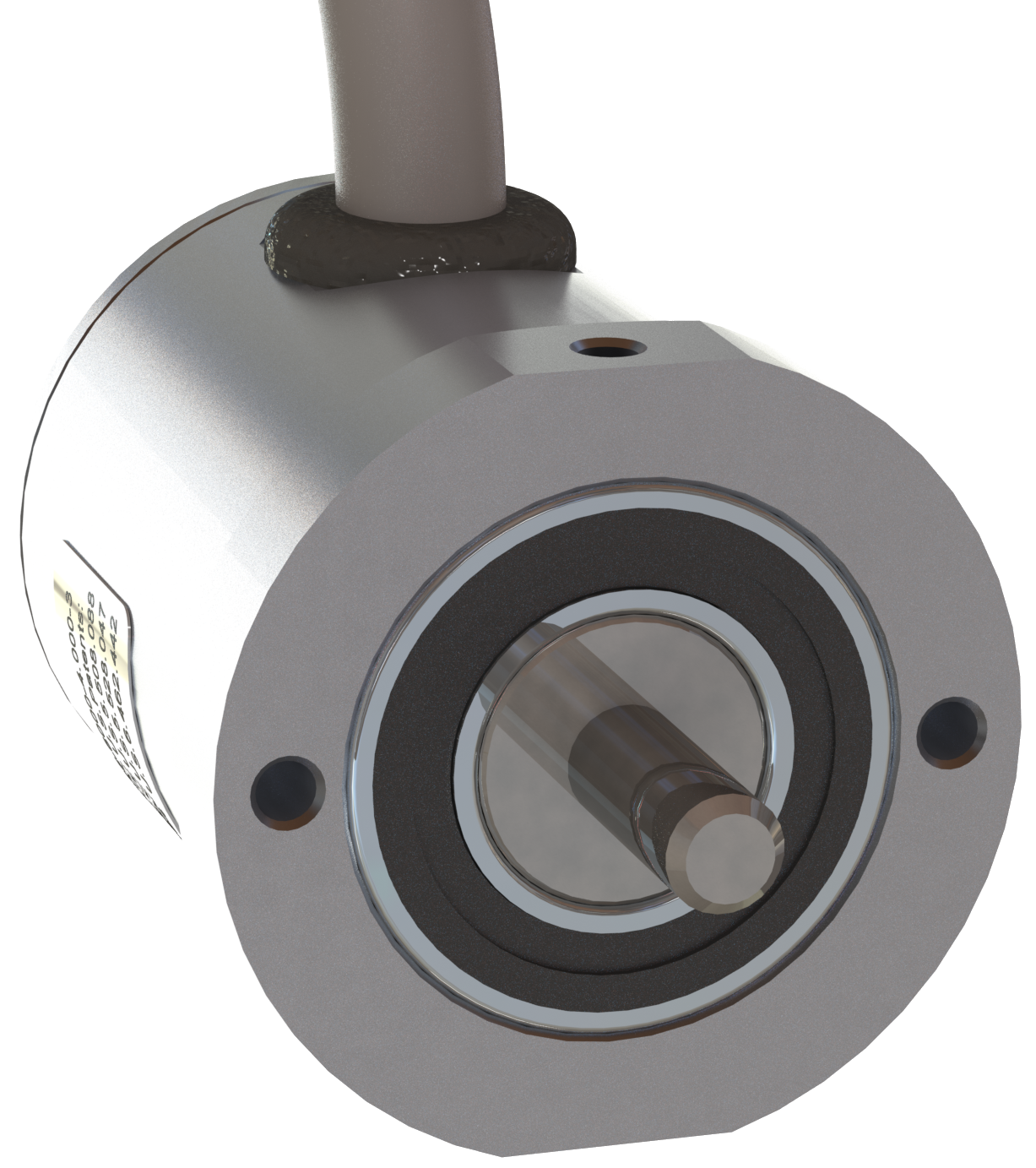

MEHR25+K_2_ohne_Drehmomentst%C3%BCtze

MEHR 25 K

optical incremental
 		25 4,0 - 6,0 bis 12000 2 / 3 5

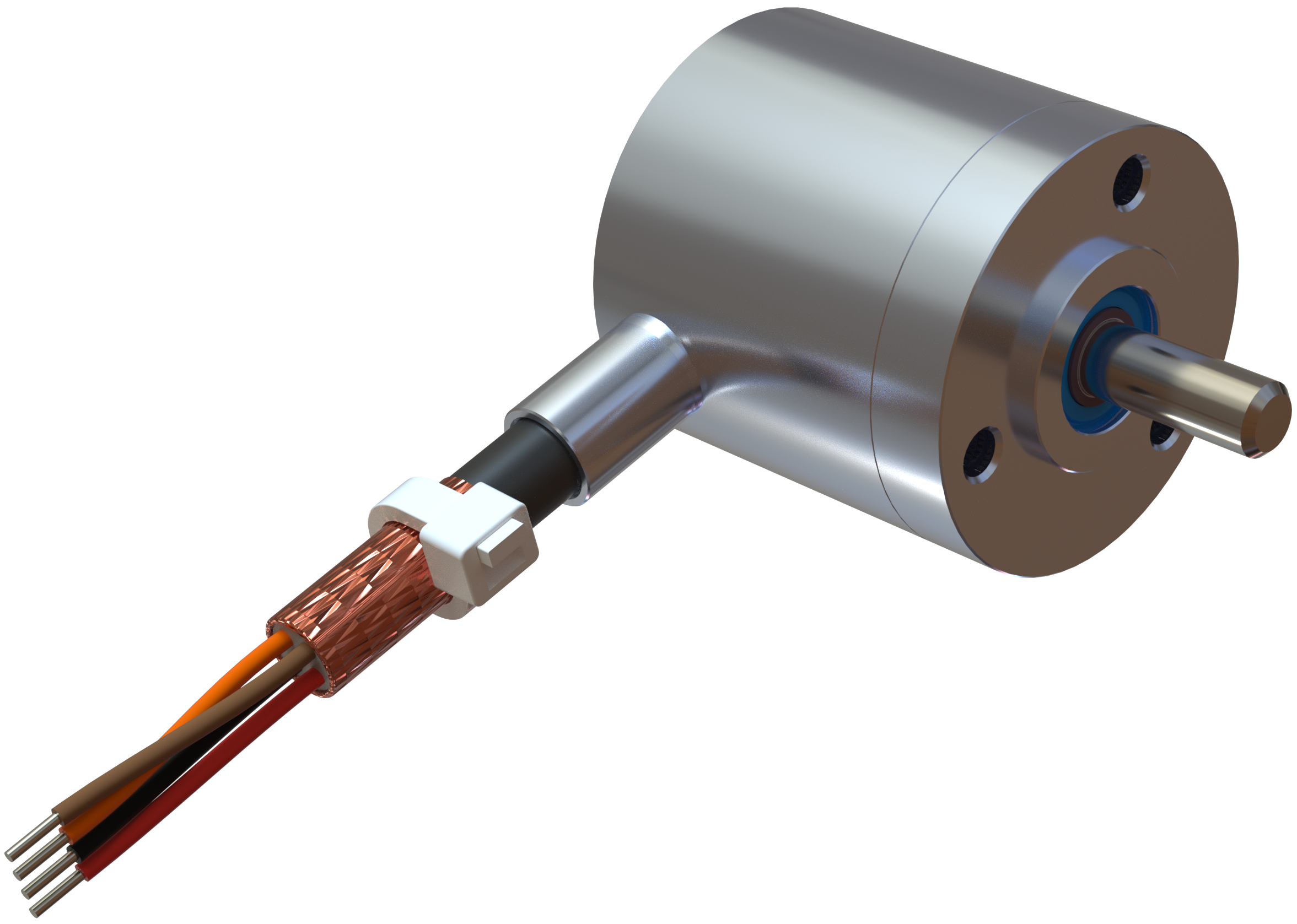

MEHR25+S_2_ohne_Drehmomentst%C3%BCtze

MEHR 25 S

optical incremental
 		25 4,0 - 6,0 bis 12000 2 / 3 5
MEHR25+S_2_ohne_Drehmomentst%C3%BCtze

MES 25 S

optical incremental
 		28 4,0 - 6,0 250 / 256 3 5

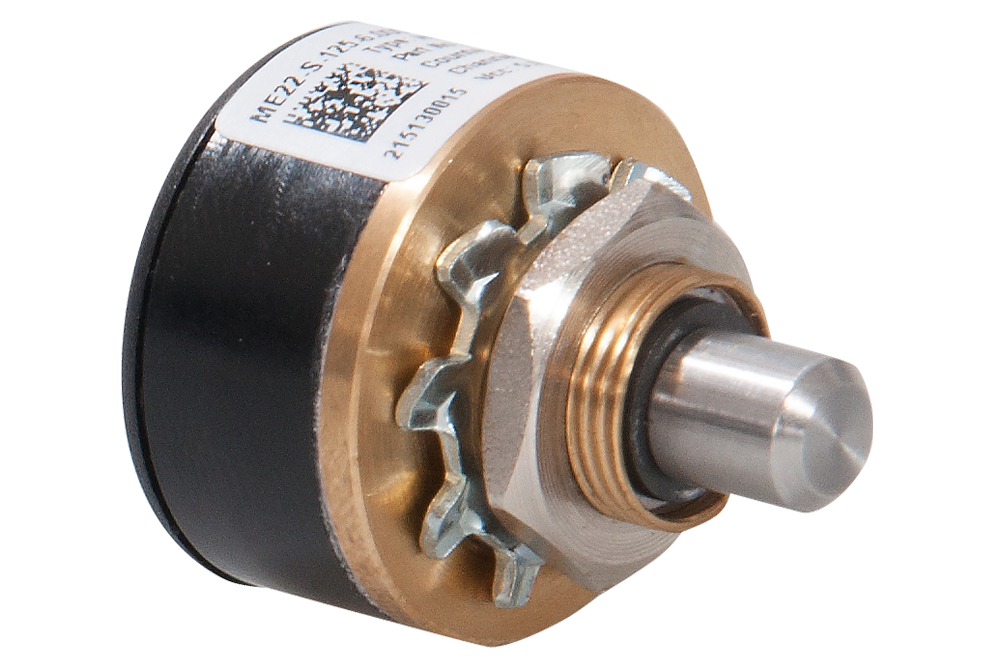

pwb-encoders-me-22-s-y01

ME 22 S

optical incremental
 		22 4,0 / 6,0 1 - 360 2 5
MEHR25+K_2_ohne_Drehmomentst%C3%BCtze

MES 25 K

optical incremental
 		25 4,0 - 6,0 250 / 256 3 5

All magnetic incremental
encoders

Outer diameter in mm Drilling in mm Resolution in cpr Output channels Voltage V DC
MEHR25+S_2_ohne_Drehmomentst%C3%BCtze

MEM 25 S

magnetic incremental
 		25 2,0 - 6,0 1 - 1024 3 5 / 8 - 30
MEHR25+K_2_ohne_Drehmomentst%C3%BCtze

MEM 25 K

magnetic incremental
 		25 2,0 - 6,0 1 - 1024 3 5 / 8 -30
